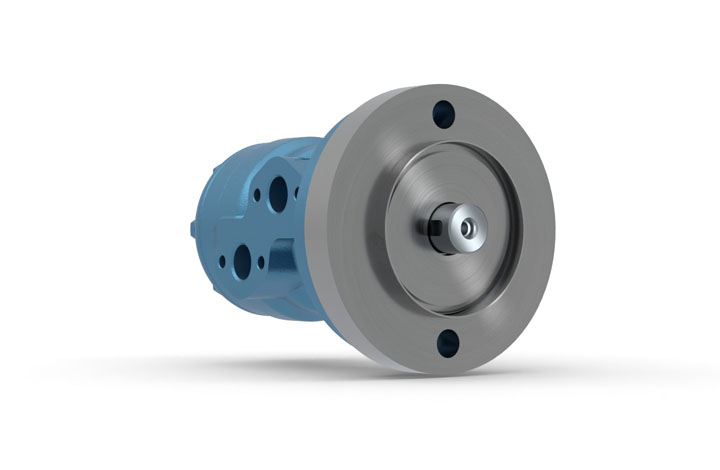

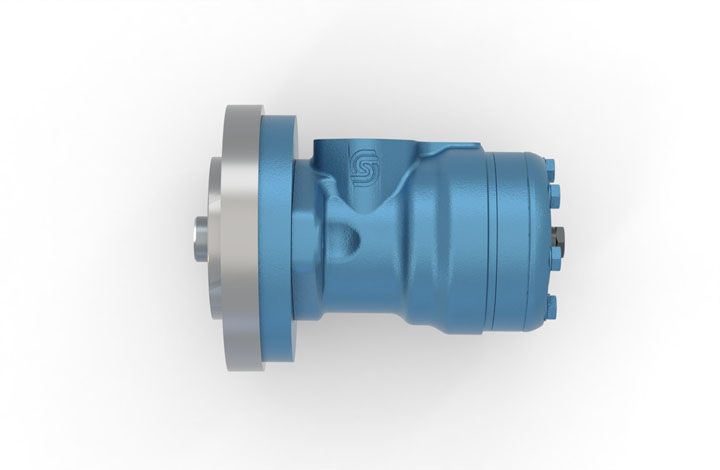

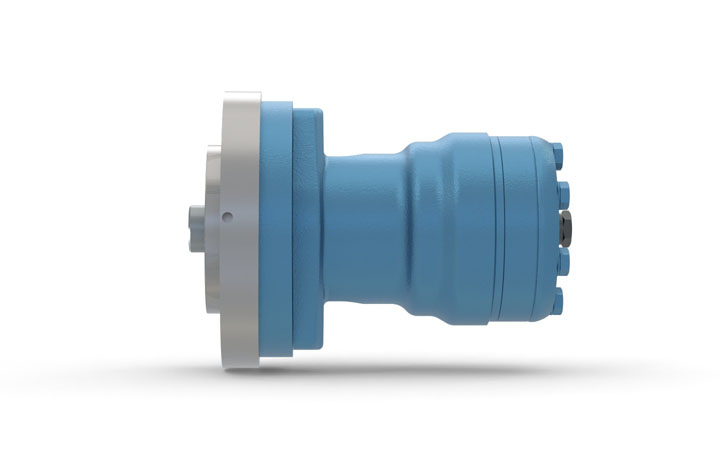

BEGE MIG HYDRO Serie – Encoders for Hydraulic Motors

Optimize the production process and avoid redesigning your machine with the integration of the BEGE MIG Encoder for Hydraulic Motors; the patented hydro flange encoder for ultra-precise positioning. The MIG encoder makes highly accurate positioning tasks easy to perform and is compatible with virtually all controls (HTL and TTL).

This compact, dustproof and fully shock and water-resistant flange encoder is especially customized for flange dimensions of (Danfoss) hydraulic motors. The combination of all features makes the MIG hydro encoder the right solution for when precision counts.

MIG HYDRO Serie – Encoders for Hydraulic Motors: main features

Robust and shockproof vulcanised plastic magnet
Fits on every IEC-standard electric motor
Very stable contactless signal measurement
Completely protected against dirt, liquid and corrosion
Adds a maximum of 15mm to the total length
The flange is specially designed for (Danfoss) Hydraulic Motors

High Quality Engineering

  • Strict Material Selection
  • Standard Quality Control
  • High Efficiency Technology

IEC Standard Size

  • Worldwide Standard
  • Broadly Applicable
  • Standard IEC Dimensions

Space-Saving Design

  • Reduce Use of Space
  • Space-Efficient Design
  • Compact Engineering

Technical specifications & more info

Technical specifications

Connecting voltage Ub5 - 24V DC
Max. impulse frequency (kHz)≤ 100
Max. speed (rpm)6.000 (1.024 pulses)
3.000 (2.048 pulses)
Output signalsA+B, -A-B/90°
Impulses / rotation1 - 2.048
InterfaceHTL (Push-Pull)
TTL
External evaluationNPN, PNP, RS422
Temperature range-30°C to +80°C
Connection cablePUR-sheath 6 x 0,14 screened
Protection classStandard IP55
IP67 (see catalogue)
CertificatesCE

Variations

Suitable forDanfoss Hydro Motors
Flange & hub materialAluminium
Stainless steel
Max. cable lengthmax. 100 m at 5V DC
max. 20 m at 24V DC
max. 50 m at 24 VDC and impulse frequency max. 50 kHz
Flange designHydro

Optional features

Suitable for hydromotor

Increased temperature range

Deviating rotor bore

Customer-specific flange

Inquire availability
